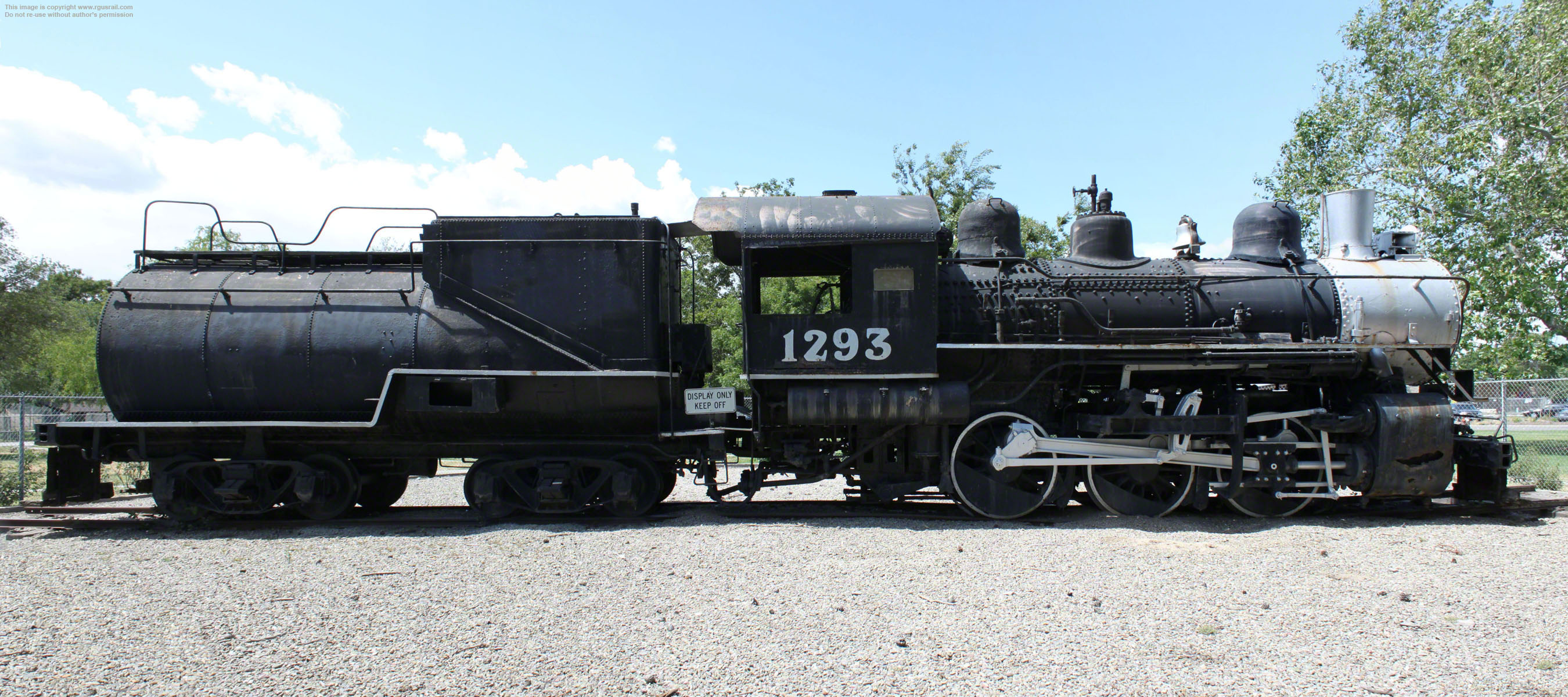

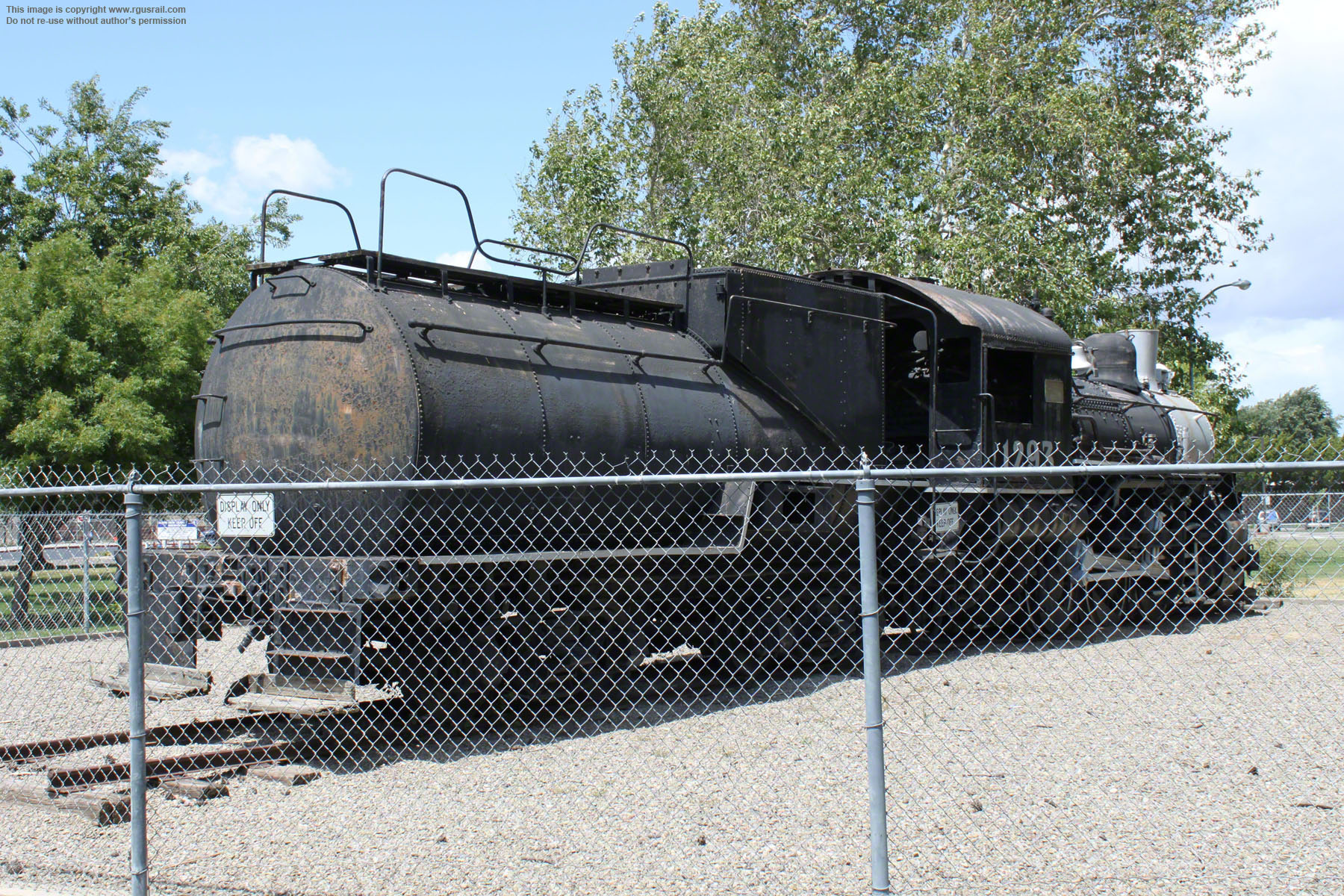

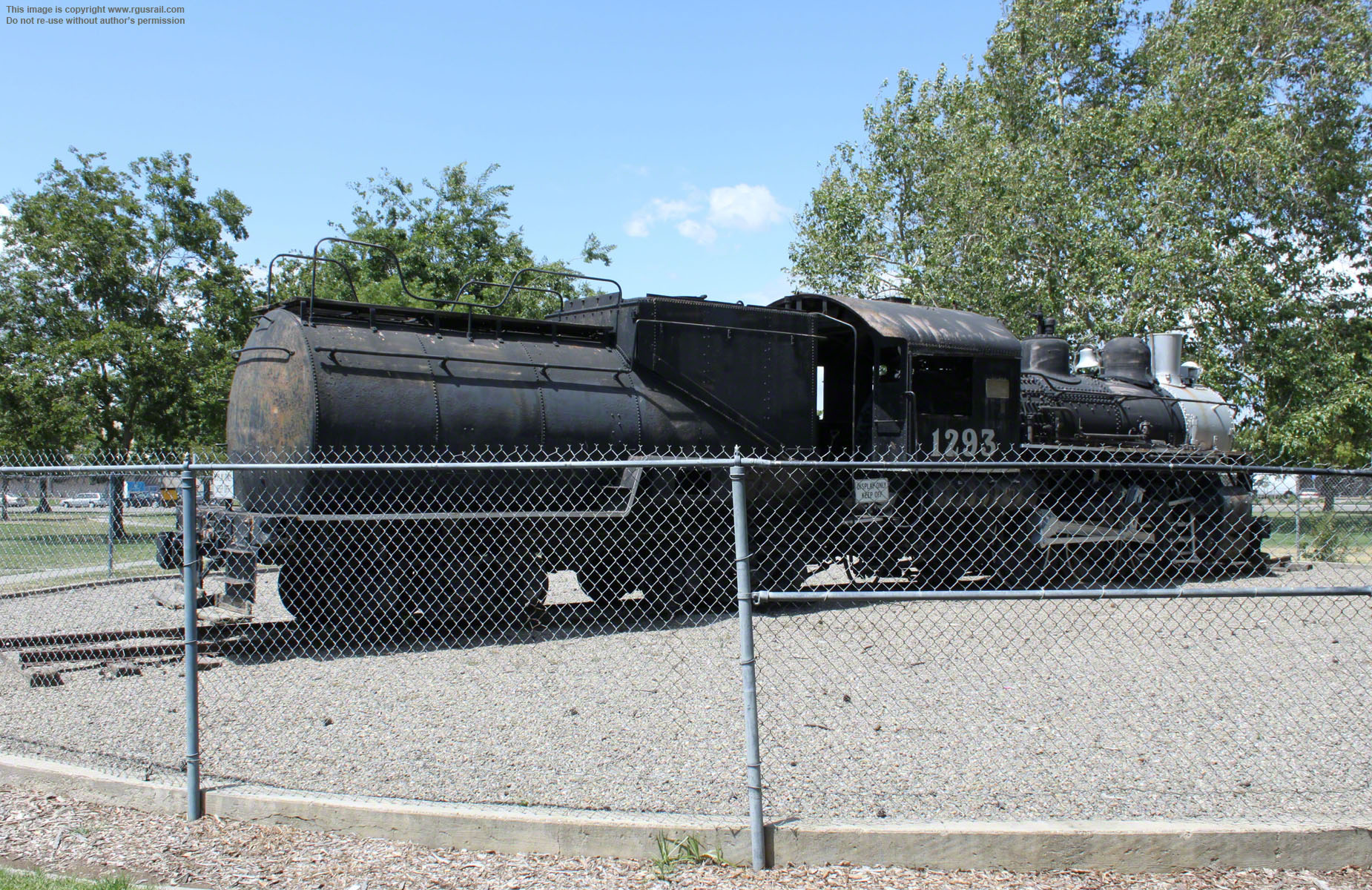

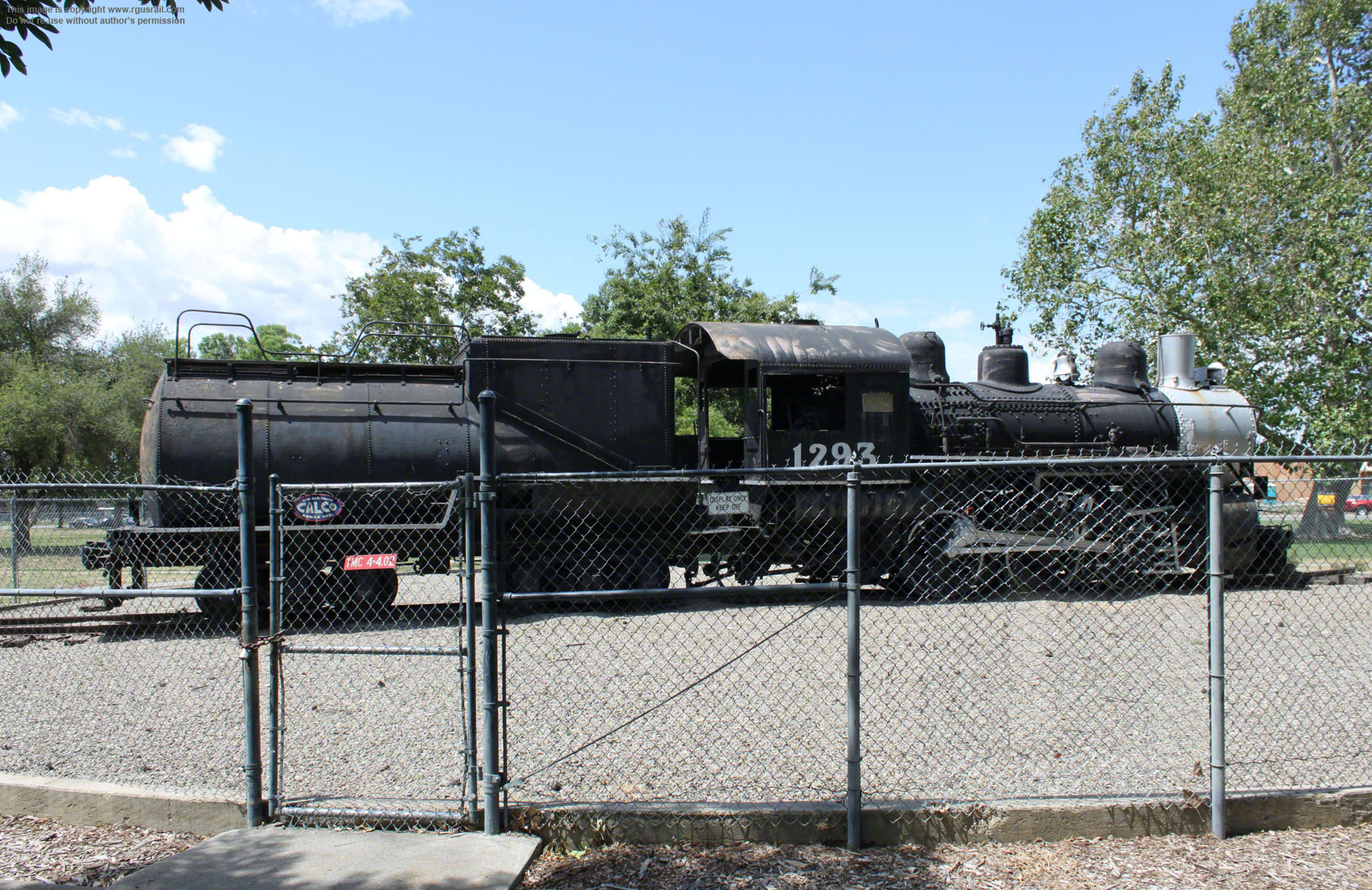

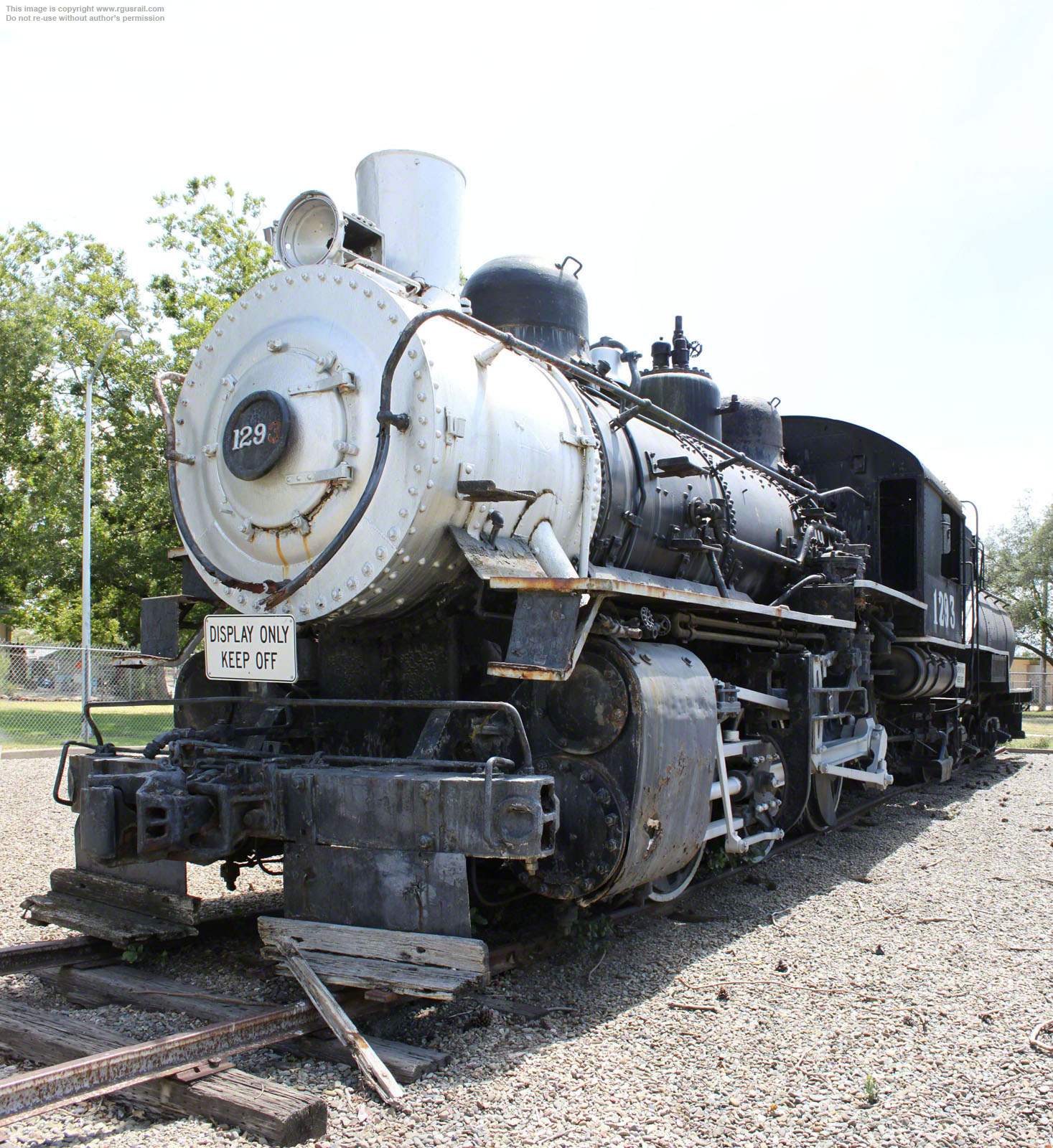

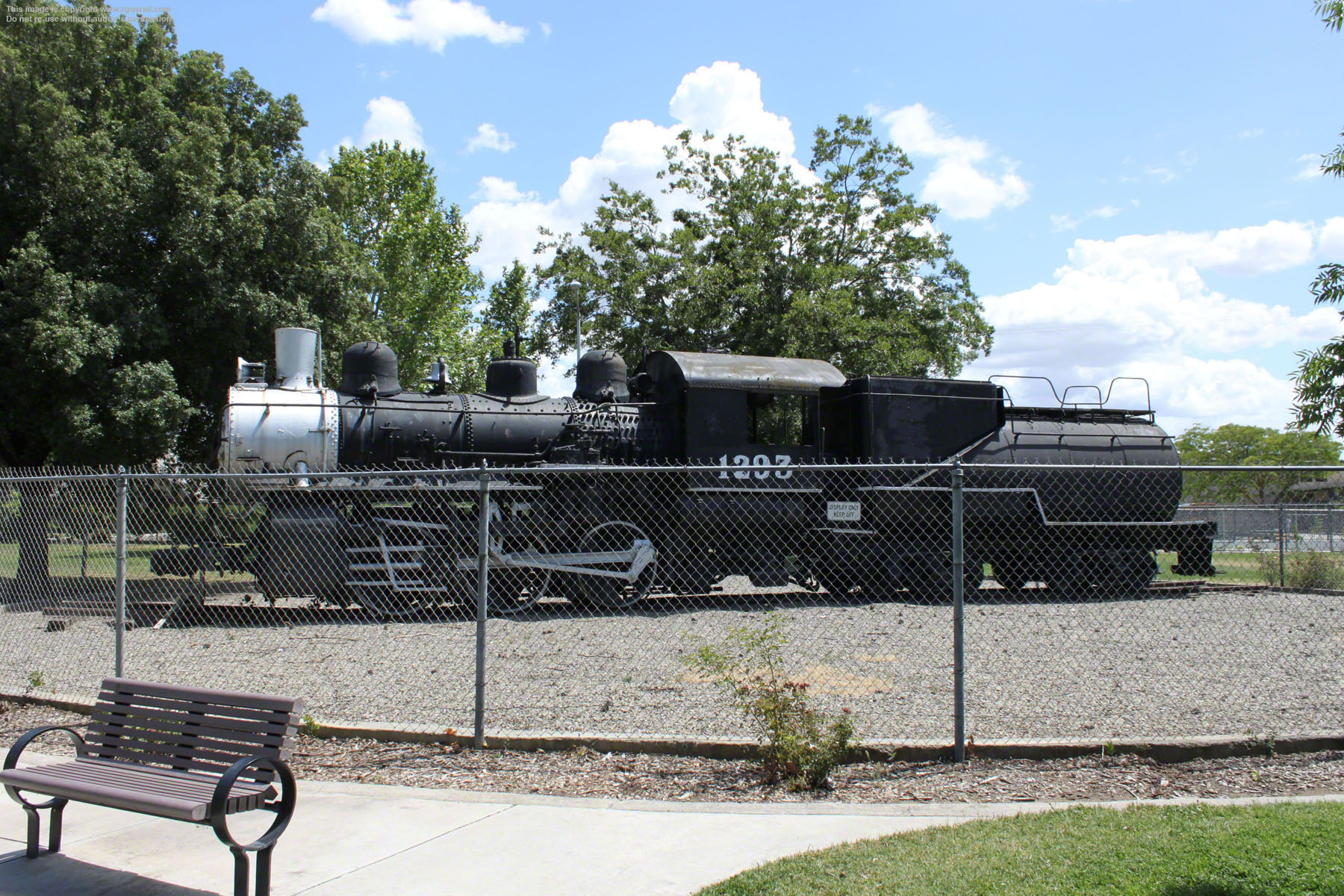

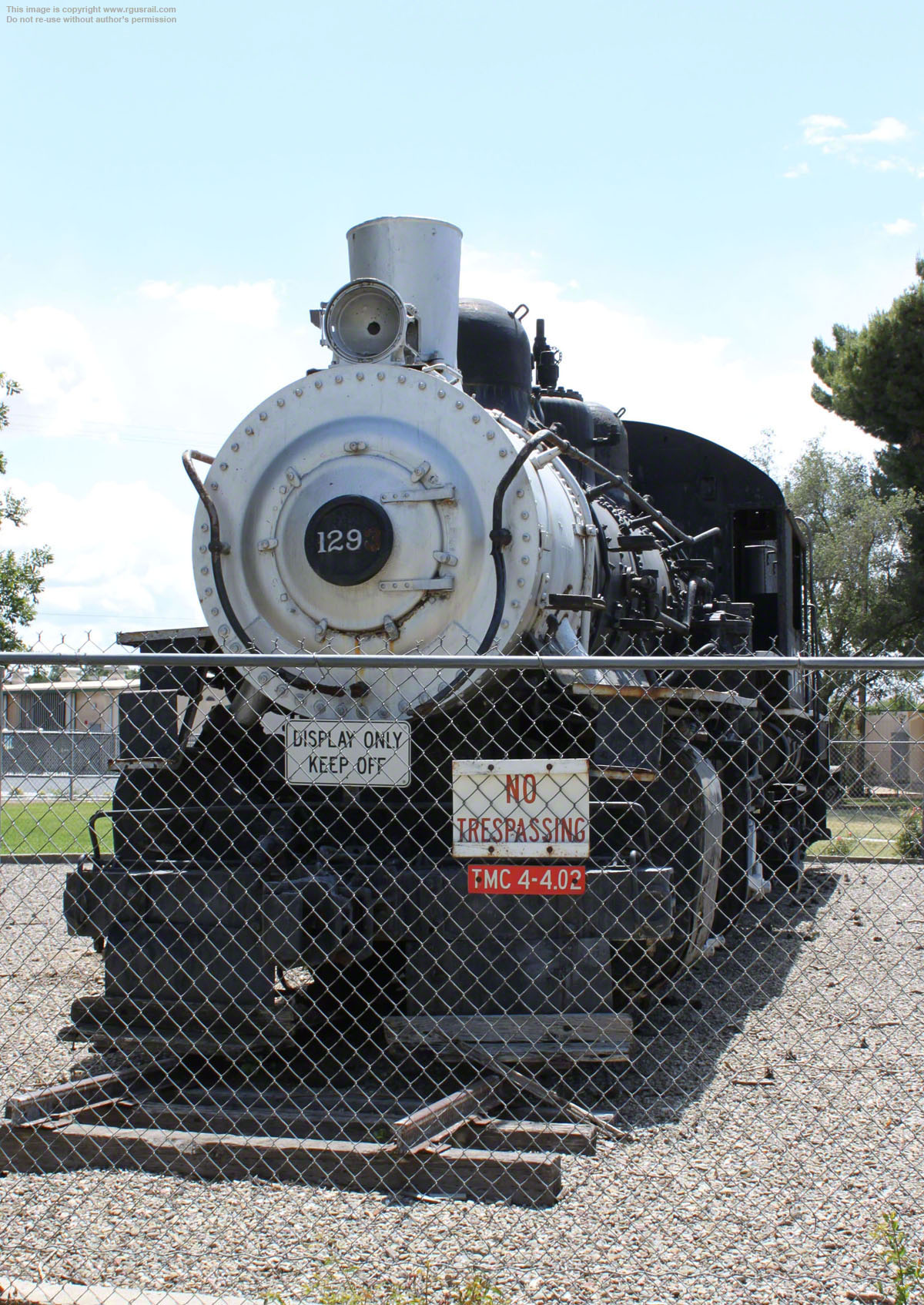

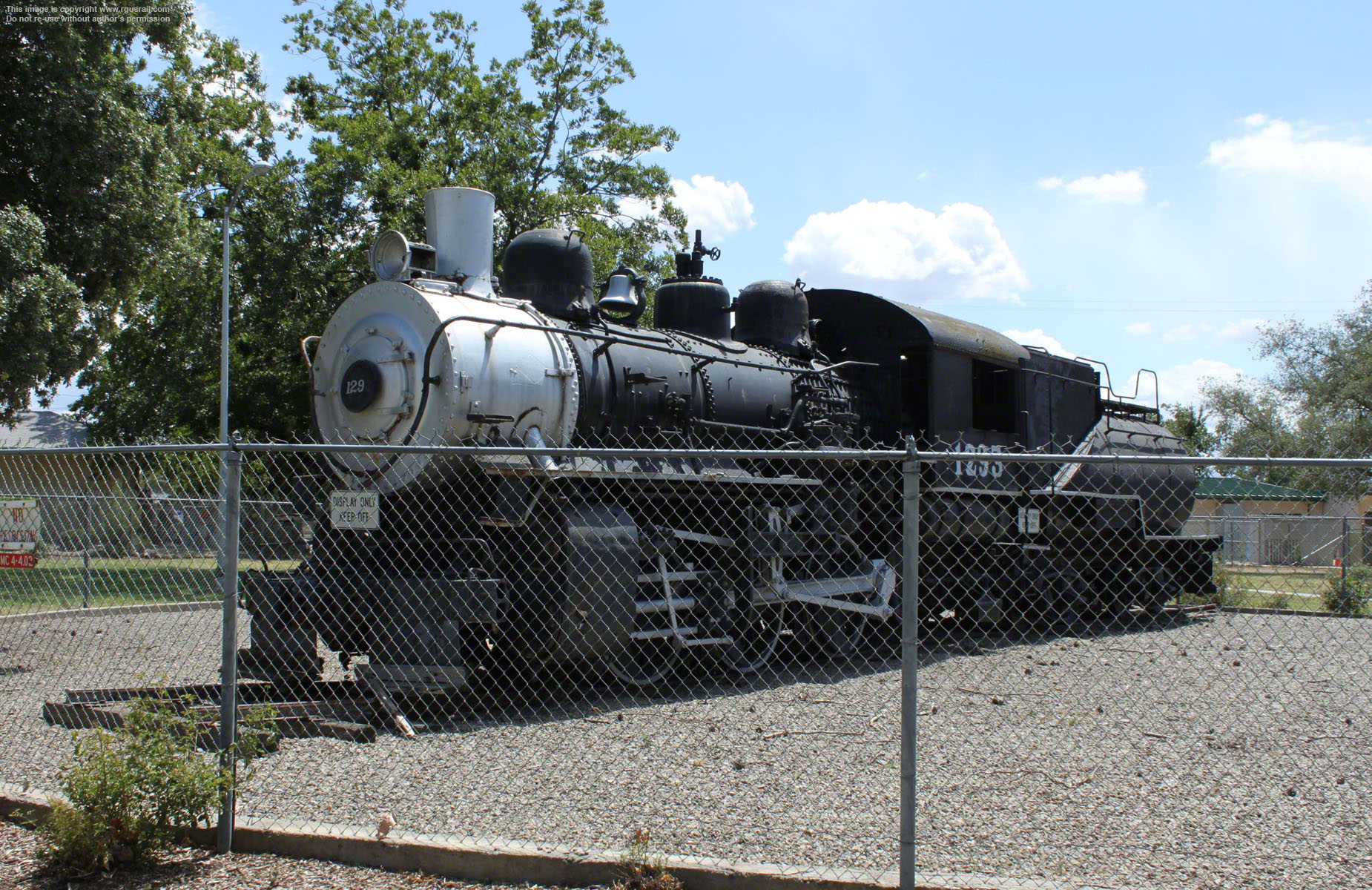

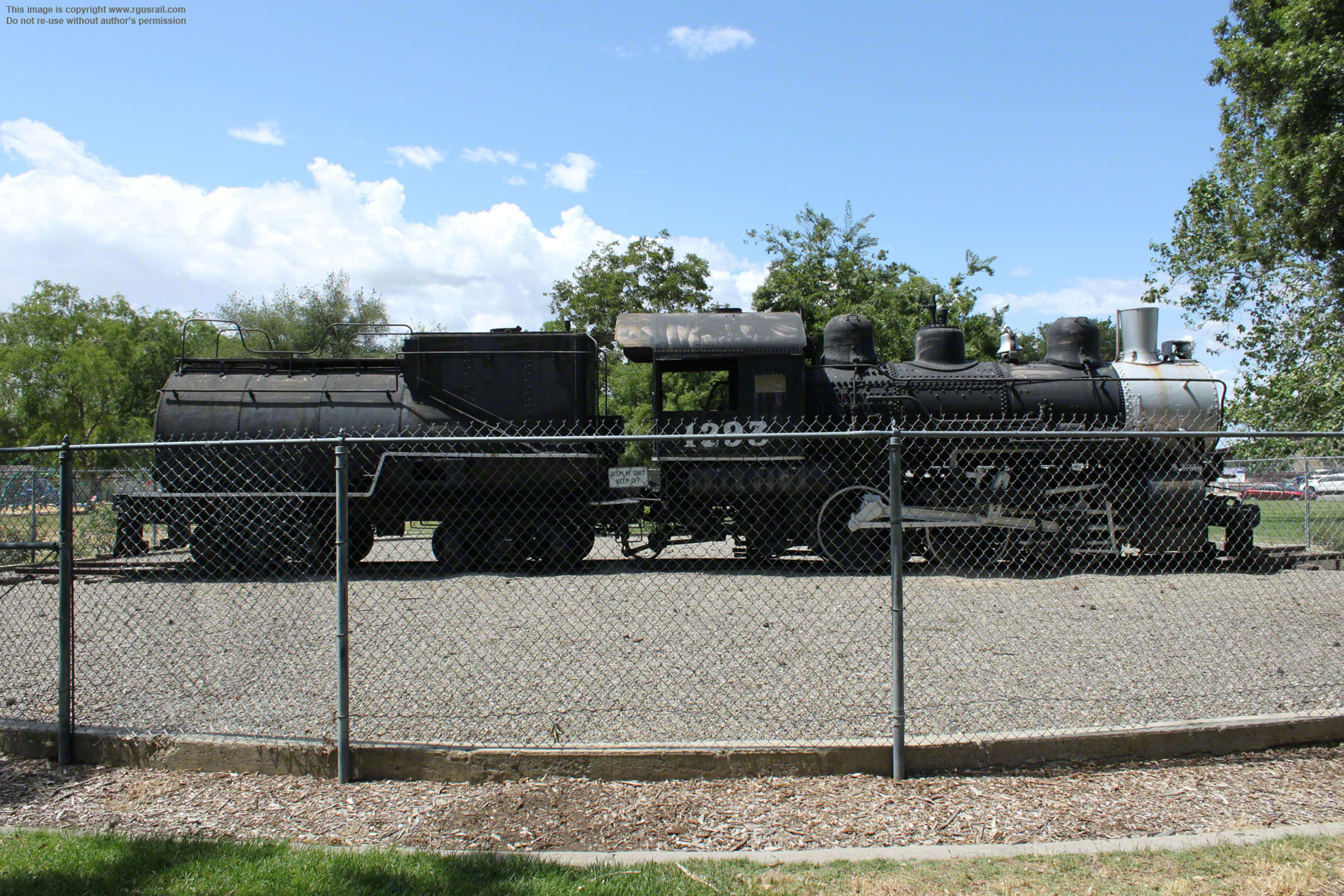

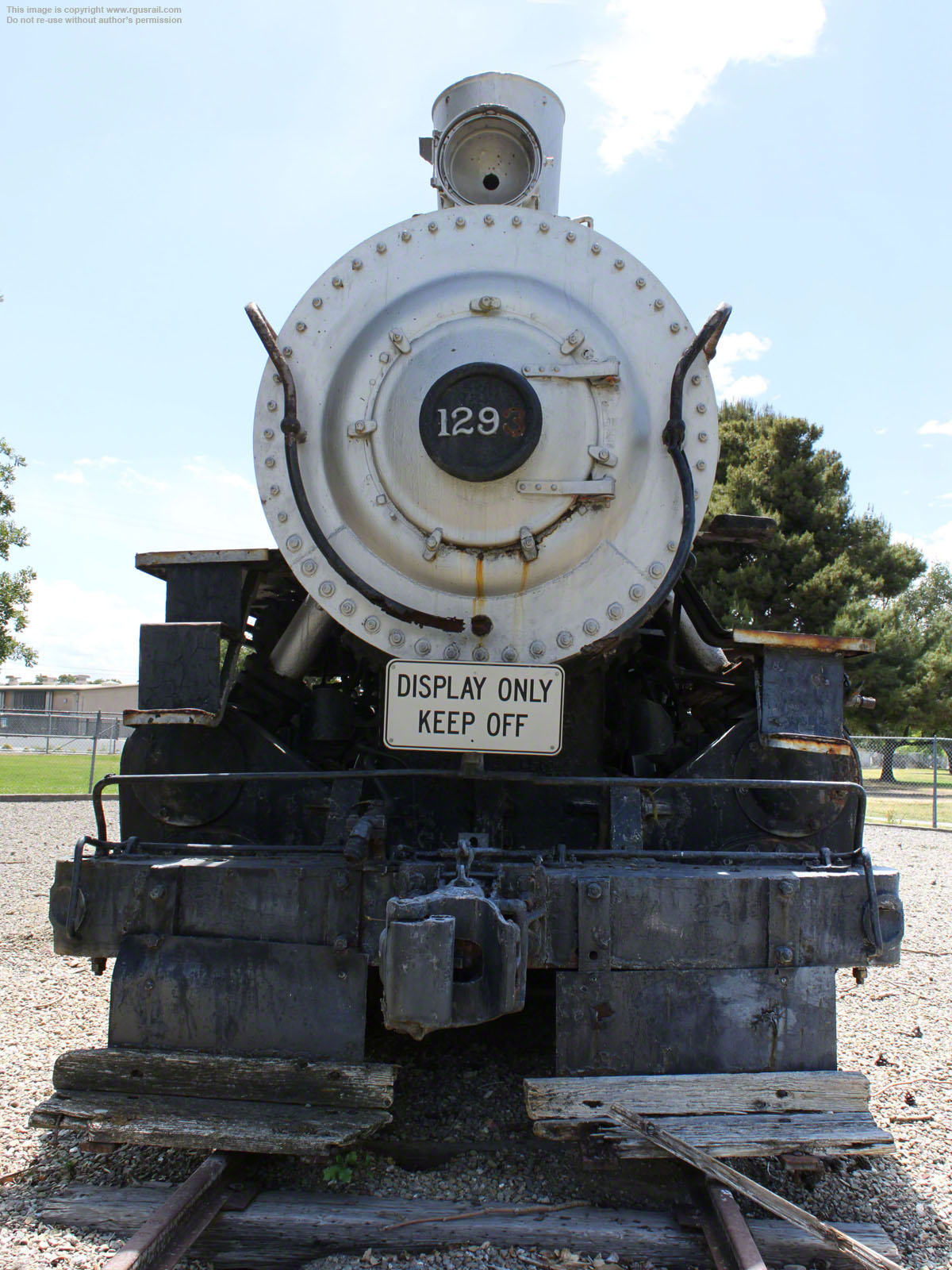

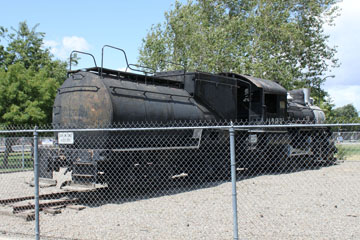

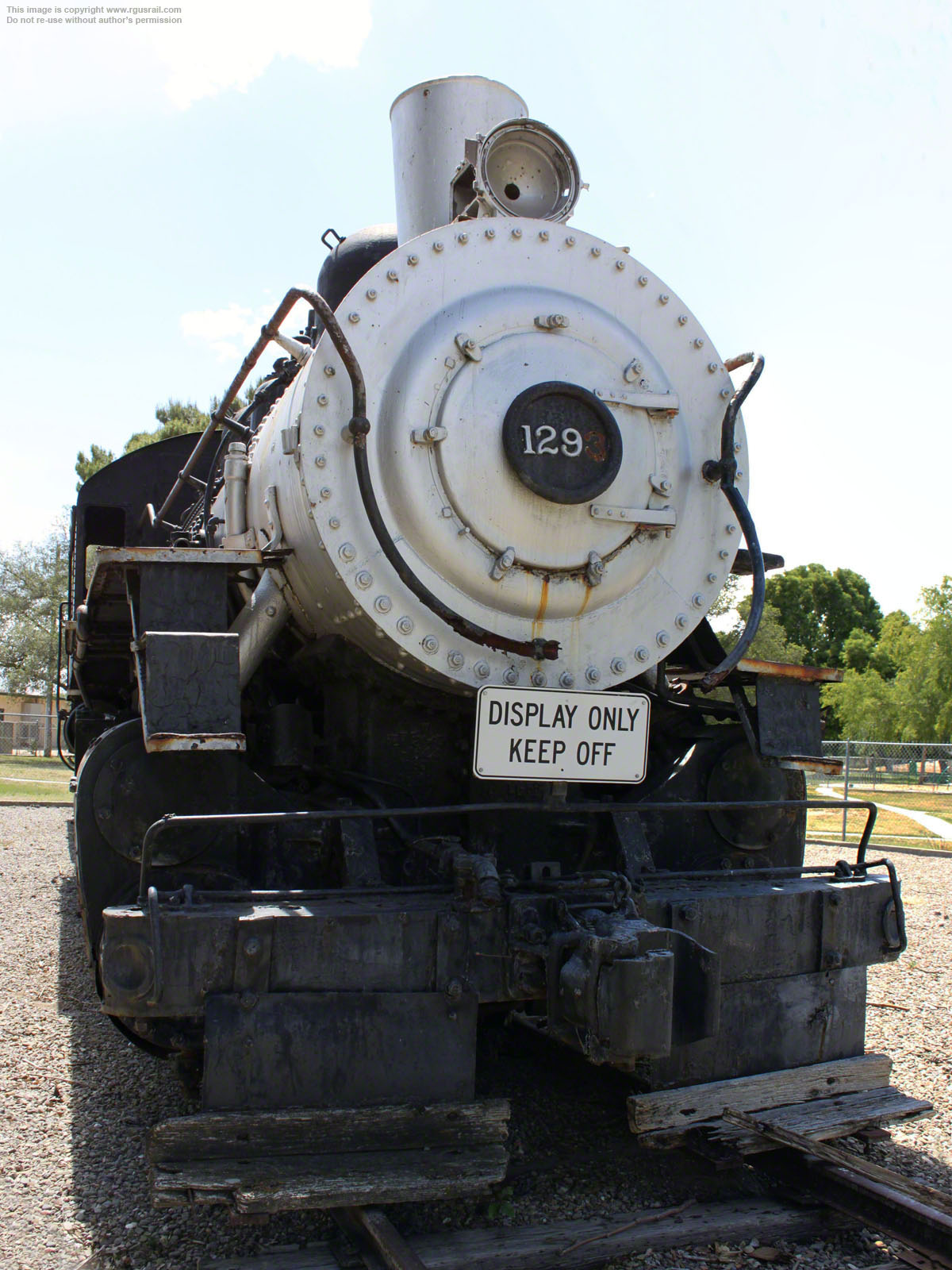

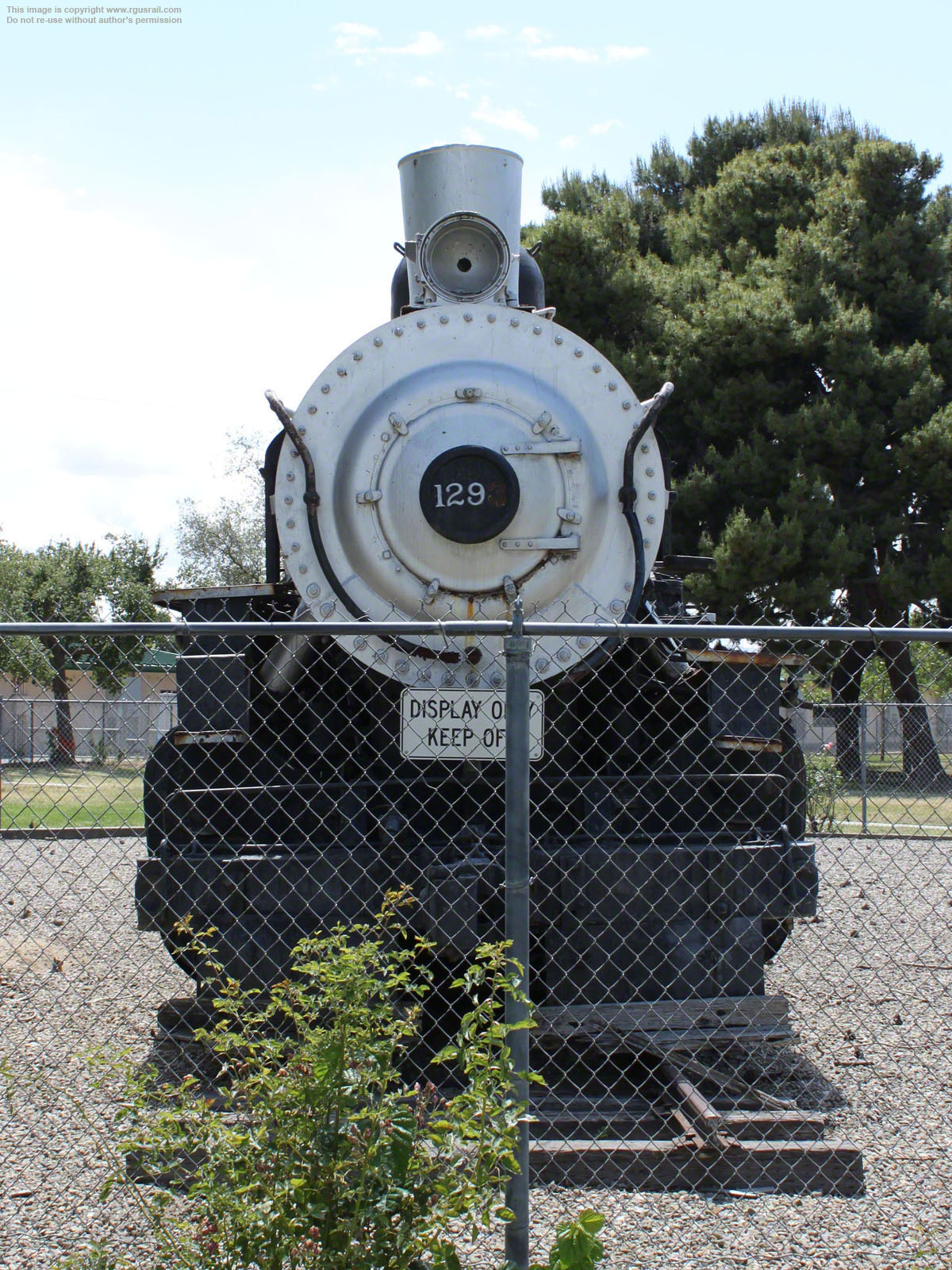

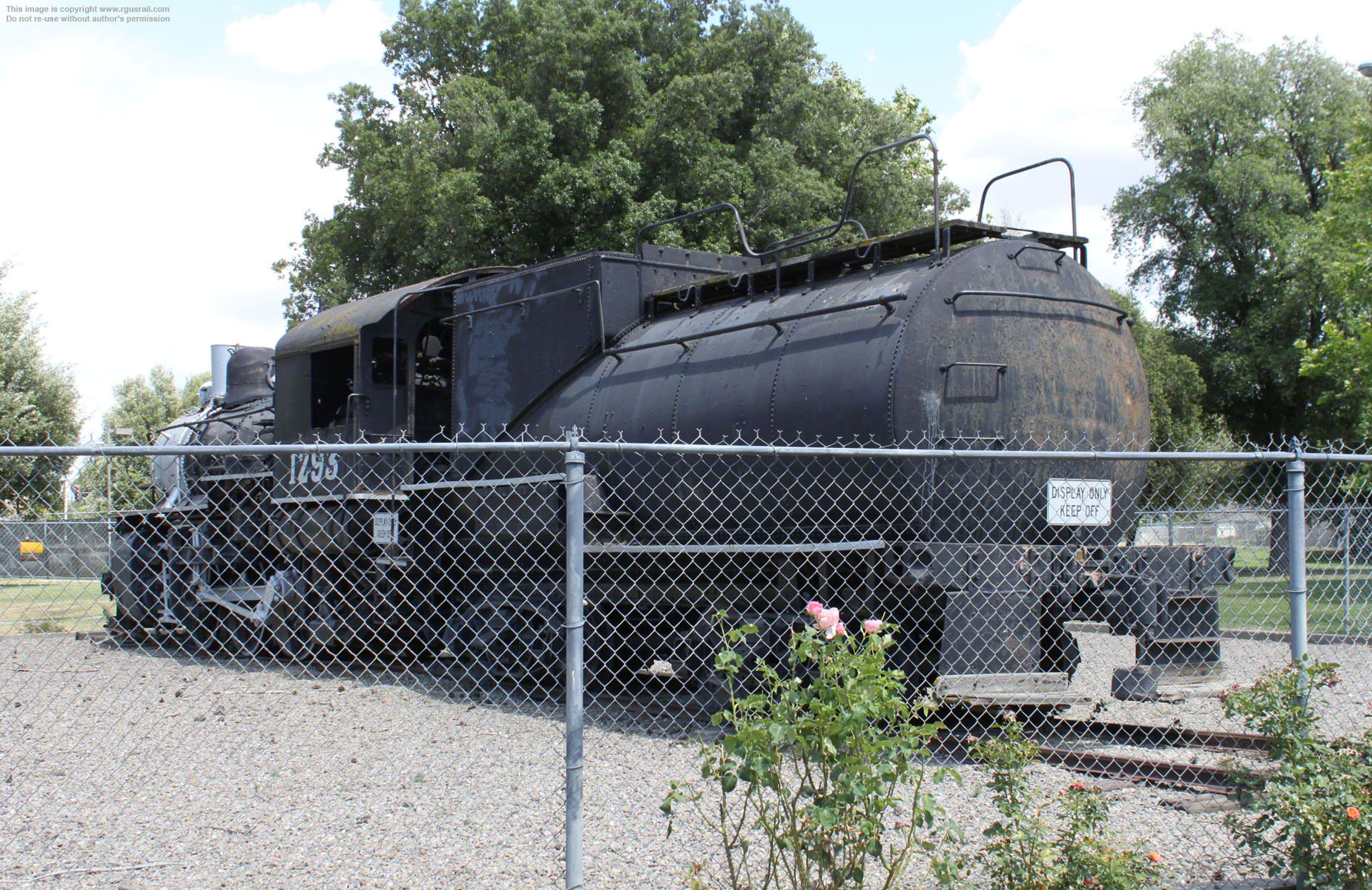

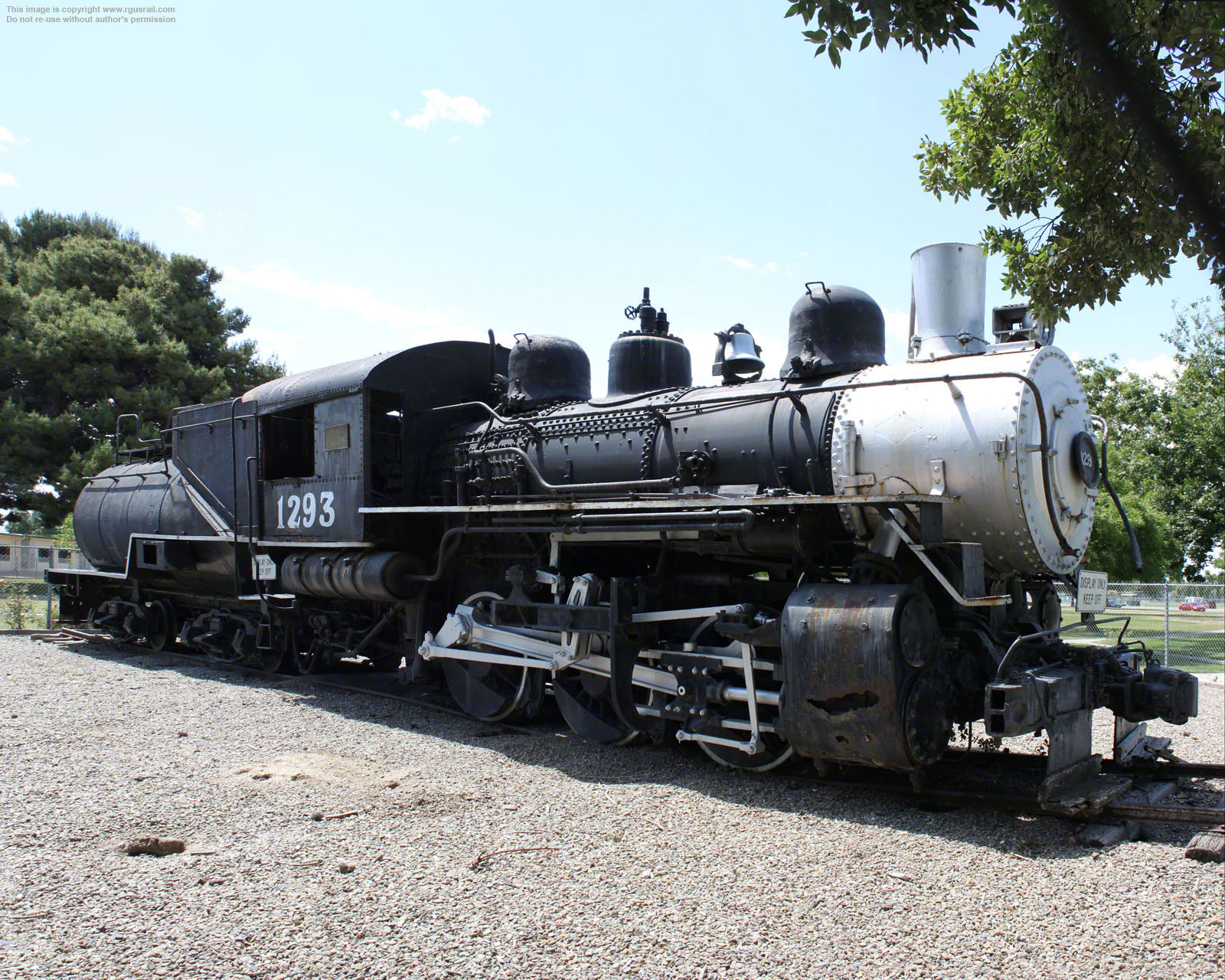

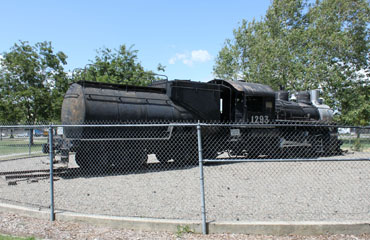

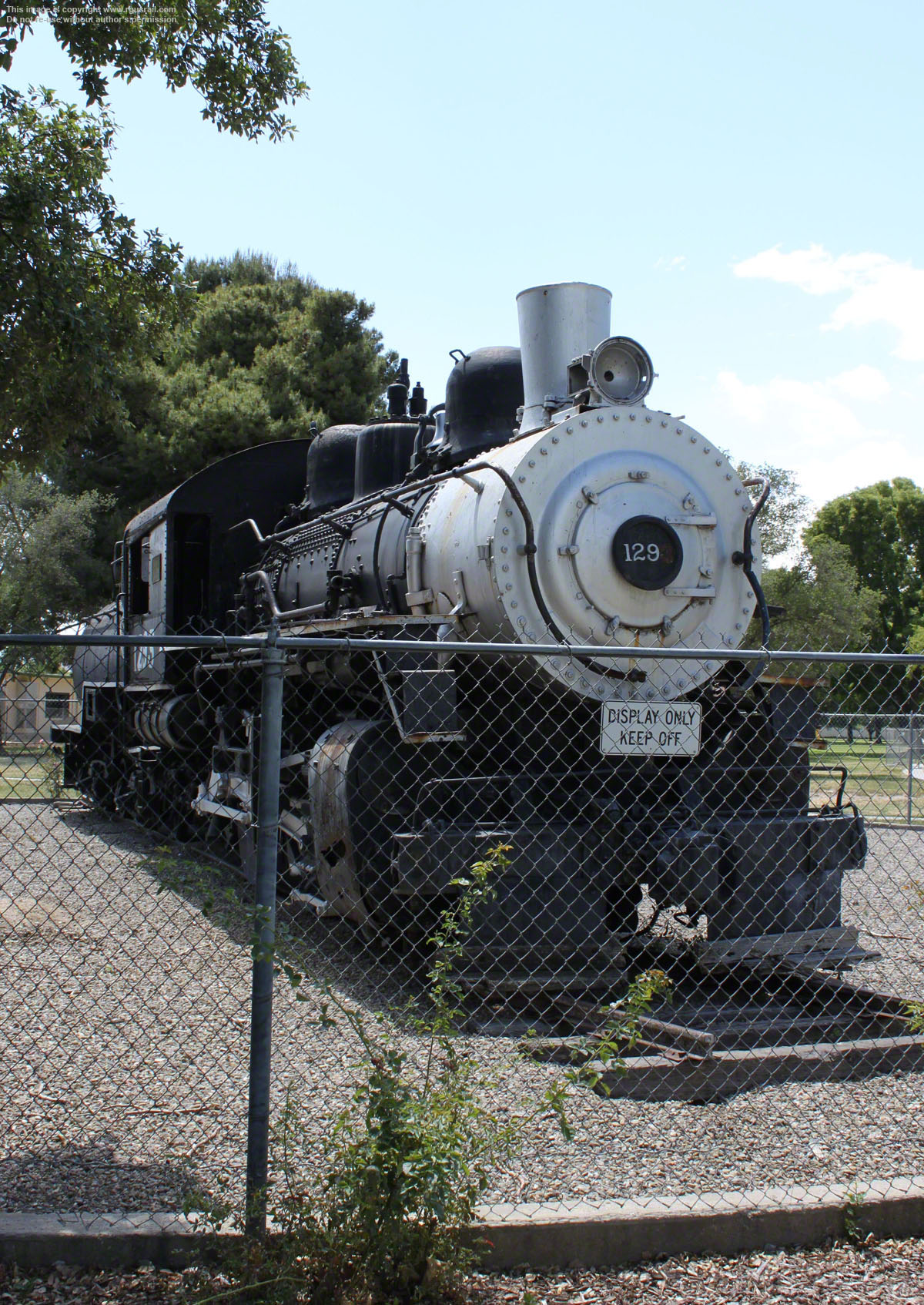

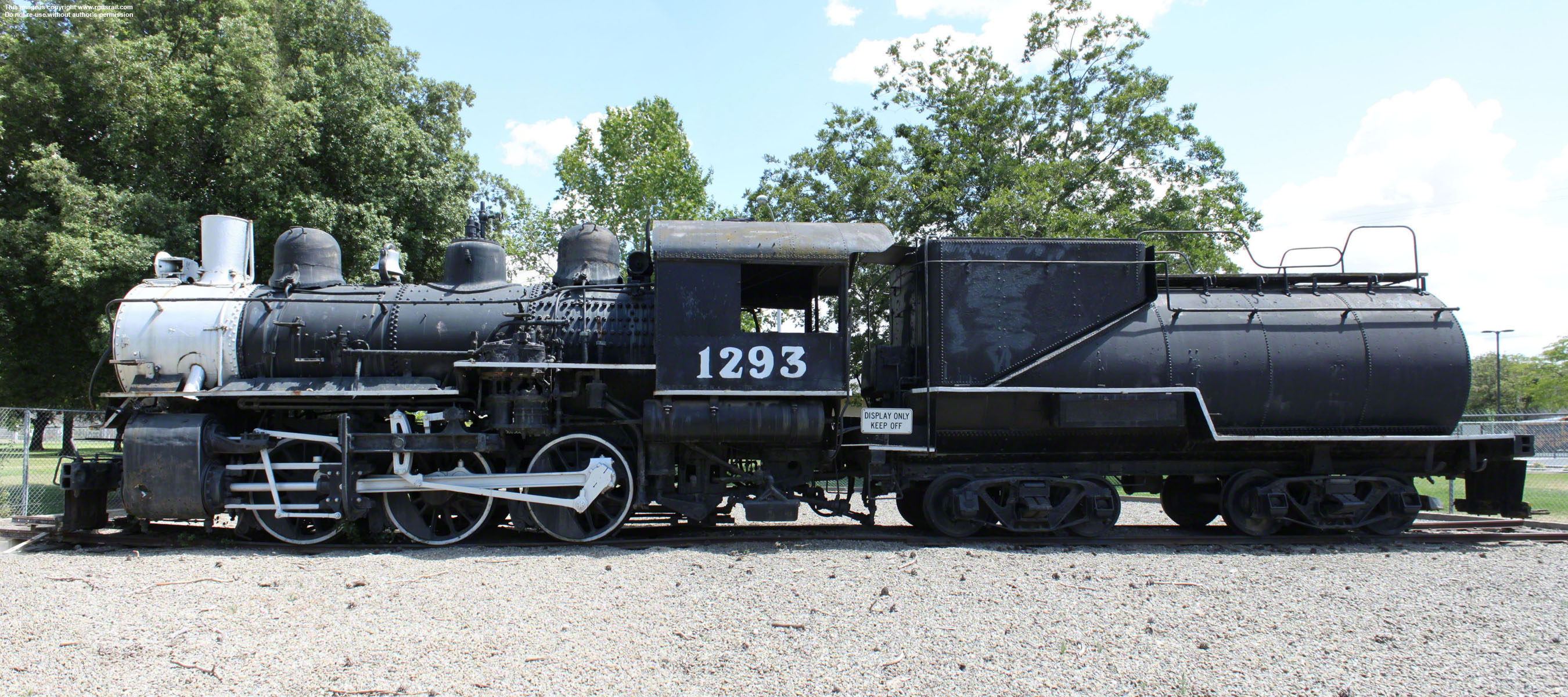

SP S-14 #1293, Dr. Powers Park, Tracy, CA

#1293, a Southern Pacific S-14 Class 0-6-0 switcher, was built in 1924 by Lima. It worked in several SP yards along the Pacific Lines for the next thirty-four years before being retired in 1958 and donated to the City of Tracy.

The locomotive, on display in Dr. Powers Park on West Lowell Ave was looking a little tired and in need of a paint job when I visited, but there were plans to restore and relocate it to downtown Tracy and a new Tracy Railroad Historical District in what was once part of the SP’s West Side Line freight yard.

Ten S-14s (#1285-#1294) were built by Lima for the SP. Another ten were also built by Lima for the company’s Texas & New Orleans subsidiary (#147-#156), as well as ten at the SP’s Houston shops (#157-#166). You can see one of the TNO S-14s 0-6-0s on the TNO #842 page of this website.

#1285 weighs 155,000 lbs and has 57” drivers and 20” x 26” cylinders. Operating at a boiler pressure of 200 psi, it delivered 31,020 lbs tractive effort. The standard Vanderbilt tender weighs 138,100 lbs light and has a capacity of 7,000 gallons of water and 2,940 gallons of oil.

Digimarc

Digimarc and the Digimarc logo are registered trademarks of Digimarc Corporation. The "Digimarc-Enabled" Web Button is a trademark of Digimarc Corporation, used with permission.

SP S-14 #1293, TracySP S-14 #1293, TracySP S-14 #1293, TracySP S-14 #1293, TracySP S-14 #1293, TracySP S-14 #1293, TracySP S-14 #1293, Tracy
SP S-14 #1293, TracySP S-14 #1293, TracySP S-14 #1293, TracySP S-14 #1293, Tracy
SP S-14 #1293, TracySP S-14 #1293, TracySP S-14 #1293, TracySP S-14 #1293, Tracy
SP S-14 #1293, TracySP S-14 #1293, Tracy

The 0-6-0 was ideal for municipalities wanting to preserve a taste of their railroad heritage, so several SP examples have survived.

You can see others on the SP S-10 #1237 page of this website, the SP
S-10 #1298
, the SP
S-12 #1258
and the Travel Town pages.
